Printed target 21x16 measurement using i1pro2

Piezography Professional Tools
1

Still struggling trying to measure a Piezography printed 21x16 target using i1pro2 (with iprofiler - ipublishing).
I have loaded the right 21x16 target (.pwxf) into ipublisher, I start the procedure and get the following error messages from row 1, no matter what I do (starting from left or from right, starting from first patch to last or from margin to margin)
I tried to measure in spot mode and it seems to be working OK (taking on measurements) but i cannot be sure that I am targeting the right patch each time and hence it seems unpractical to make all measurements that way.

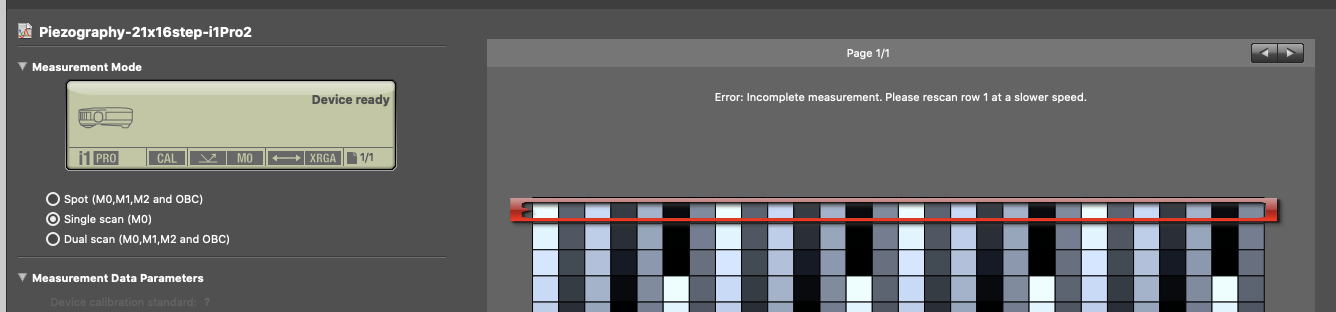

screenshot 1
screenshot 11338×302 30.2 KB

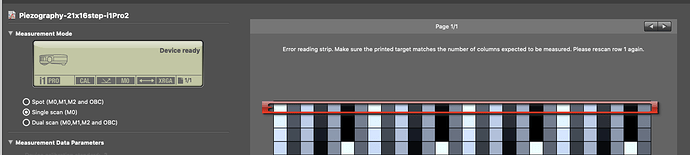

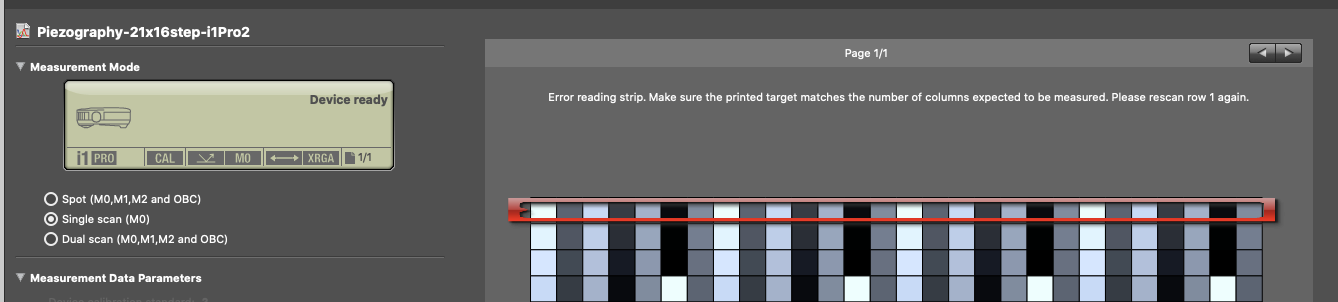

screenshot
screenshot1336×312 29.4 KB

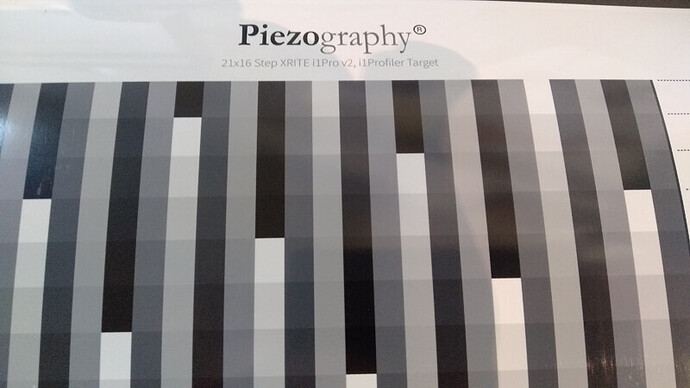

IMG_20201117_171300
IMG_20201117_171300800×450 57.9 KB

The iprofiler - ipublishing driver version I am using is: V3.3.0 (XRD version 3.0.128)
Could it be that this latest driver is unstable?

Important add on: i just counted the number of columns on the printed target and on the pwxf file:
the printed target has 26 columns while the pwxf has 28 columns! Hence they are indeed incompatible… despite the fact that they bear the same name!

2

Hi - I am getting the same problem. The workflow supplied by Piezo for the 21x16 does not create a patch chart that matches the 21x16 test chart image. It is the wrong workflow, so i1Pro cannot measure the printed chart.

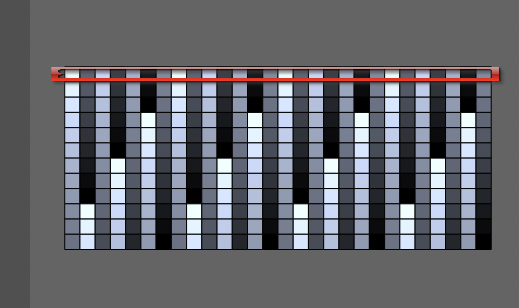

The first image here is the workflow file Piezography-21x16step-i1Pro2.pwxf, as seen in i1Profiler.

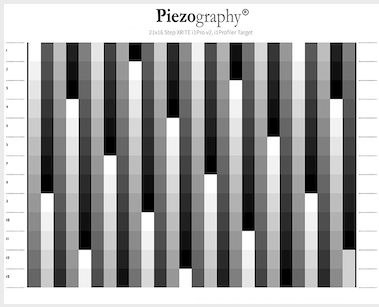

The second file is the chart that is to be measured. They are incompatible.Piezography-21x16step-i1Pro2.pwxf Piezography-21x16step-i1Pro2

3

thank you for the clear images. I will fix this tomorrow

best,
Walker

4

Here is the correct workflow for the target

i1P2-i1Profiler-Fixed.pwxf.zip (8.3 KB)

best,
Walker

5

Thanks Walker. This one works great.
