Piezography ICC tool with ISIS XL - too many values?

Piezography Professional Tools
1

Is the procedure for using data from measured ISIS XL targets the same as the i1 Pro 2 targets demo’d in the video? I printed the i1iSisXL-v1.tif target in the Piezography ICC Tool folder.

The measurement data I have from the ISIS XL target has 655 L* values, not 256 per the instructions in the Piezography Professional 2.2.1 tool.

2

Please share screenshots.

thanks,
Walker

3

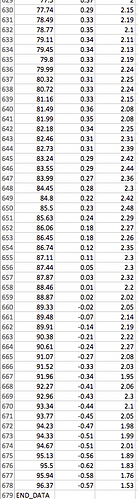

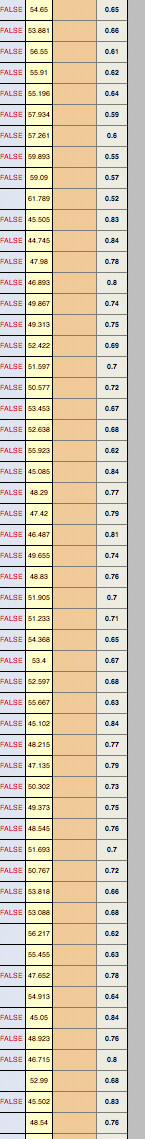

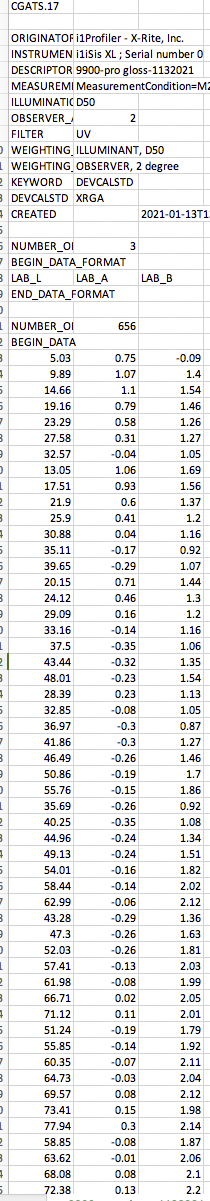

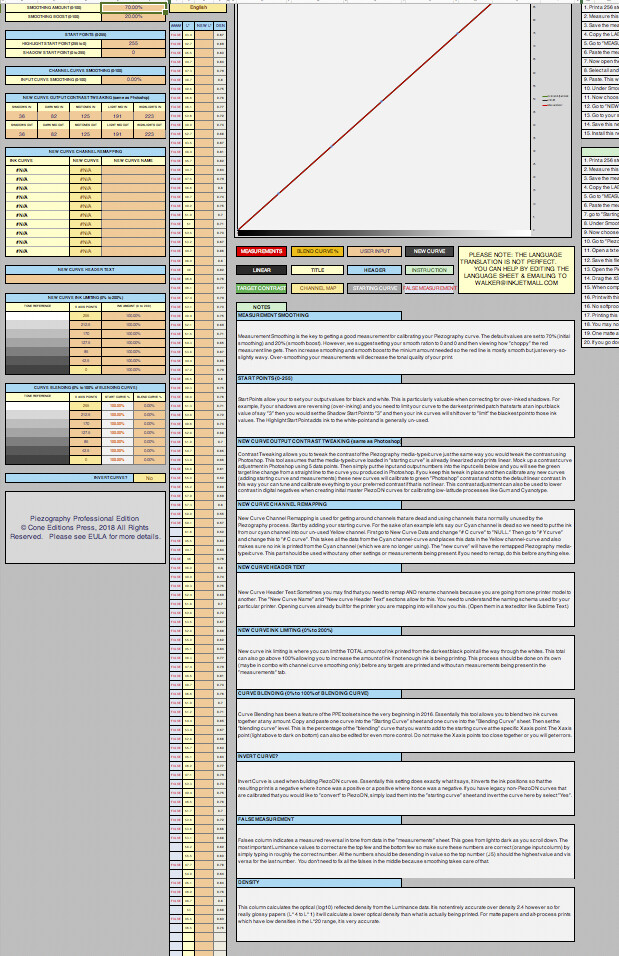

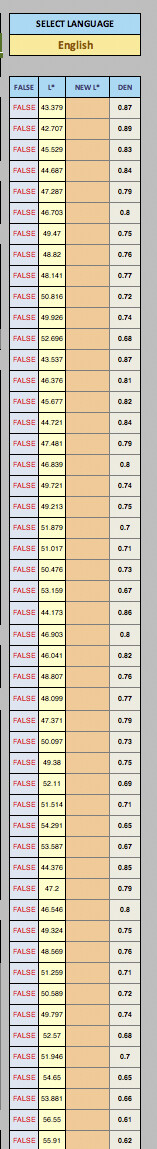

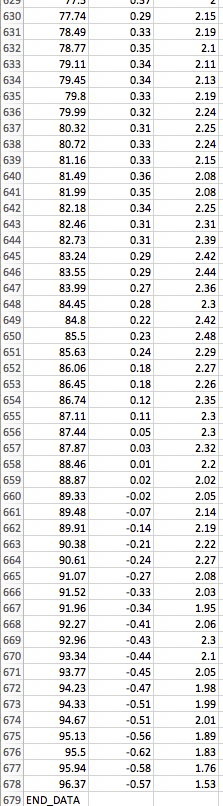

Here are screenshots of the data and the results in the Home tab.

Screen Shot 2021-01-13 at 1.22.07 PM
Screen Shot 2021-01-13 at 1.22.07 PM157×1149 91.7 KB
Screen Shot 2021-01-13 at 1.22.15 PM
Screen Shot 2021-01-13 at 1.22.15 PM145×1139 79.7 KB
Screen Shot 2021-01-13 at 1.21.42 PM
Screen Shot 2021-01-13 at 1.21.42 PM210×1201 96.4 KB
Screen Shot 2021-01-13 at 1.21.54 PM
Screen Shot 2021-01-13 at 1.21.54 PM223×806 54.6 KB

Screen Shot 2021-01-13 at 1.24.07 PM
Screen Shot 2021-01-13 at 1.24.07 PM619×956 259 KB

9900-pro gloss-1132021_M2.txt (11.5 KB)

9900-pro gloss-1132021_M2-custom-cgats-lab-only.txt (18.4 KB)

4

Very strange that it would be that many rows.

Try using this i1profiler target:

Archive.zip (574.0 KB)

regards,
Walker

5

Thanks, I will try this.

6

Hi Walker,
I printed that new target, measured and got the values into the Piezography Professional spreadsheet as expected. I have another question - when I drag the ti3 file onto Piezography-Icc-Profiler, I get this error message:

“​.​/colprof: Error - CGATS file read error : Unable to open file ‘/Users/brad_sierra/Desktop/piezo.ti3’ for reading”.

The ti3 file I tried to open containing my measurements is called “piezo test iccprofile.ti3”. It’s not titled “piezo.ti3” - I’m not sure what the piezo.ti3 file is.

7

remove the spaces in the file name

fyi, if you have i1Profiler (licensed for RGB output ICCs) making an ICC with that may be better quality.

-Walker

8

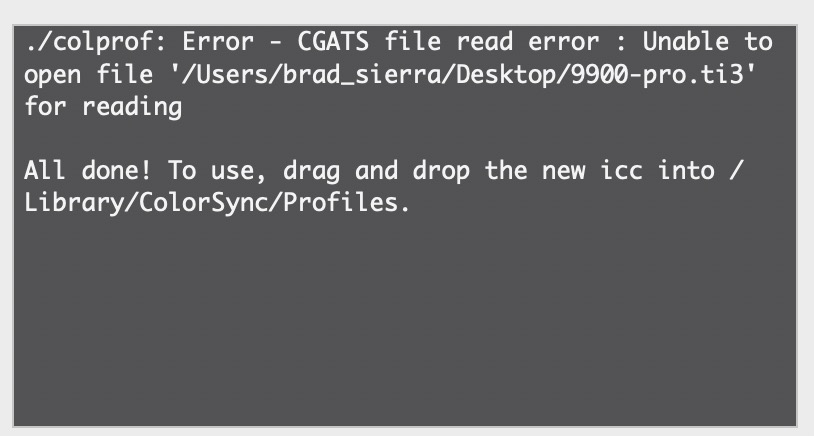

I removed the spaces in the file name and am now getting this error: " Unable to open file ‘/Users/brad_sierra/Desktop/9900-pro.ti3’ for reading"

Screen Shot 2021-01-19 at 2.17.11 PM
Screen Shot 2021-01-19 at 2.17.11 PM814×436 42.3 KB

Also, I tried making the profile with i1profiler but got an error message (“Error creating profile”). I have the Profiler Publish + Device Link package. Does it need to be the RGB version to work?

9

it needs to be rgb yes,

W

10

That’s too bad about i1Profiler; I hoped that since it could make RGB profiles along with cmyk it would work for this.

Any ideas on the error message with the Piezography-Icc-Profiler? Is the Piezography-Icc-Profiler software more optimized to use the results from measuring an i1Pro 2 target?

11

It will!

Lets do a phone call tomorrow and sort things,

best,
Walker
